Lorch V30

Lorch V30 TIG welding machine

Lorch V30 with a maximum power of 300A for industrial use. Outstanding TIG welding properties due to inverter technology

  • DC and AC/DC version available

    Stable arc - in DC and AC

    The V 30 is available in all power versions as DC and AC/DC version. Basically, the V 30 scores with a very stable arc. When welding with AC, the current shape is optimized both for a very good cleaning effect of the aluminum oxide skin and for reduced noise. In addition, the AC/DC version has an automatic dome control. Thanks to square-wave current, the V 30 shines with more thrust and maximum arc stability when welding aluminum.

    Robust and safe, the housing of the V 30

    In AC mode, the current shape is optimized for maximum stability, very good cleaning effect of the aluminum oxide skin and reduced noise.

    Pulsing and fast pulsing up to 20 kHz

    Die integrierte Puls- und Fastpulsfunktion bis 20 kHz eignet sich besonders gut für die Bearbeitung von dünnen Schweißblechen. Sie ermöglicht zudem eine herausragende Schmelzbadbeherrschung und garantiert perfekte Ergebnisse – auch bei schwierigen Schweißaufgaben.

    Energy efficiency at full output

    The integrated stand-by function ensures that individual components are switched on and off automatically. The Thermocontrol sensors monitor the temperature of the system and control the fan as required. This reduces the fan noise as well as the dust load inside the machine and also saves energy.

    Optimal parameters with SmartBase

    Thanks to SmartBase technology, the arc is always perfectly matched to the electrode you have selected. Welding parameters, ignition and working range are automatically ideally adjusted. For optimum freedom, you can fine-tune the arc individually. So you are guaranteed to weld with the arc that is optimal for you.

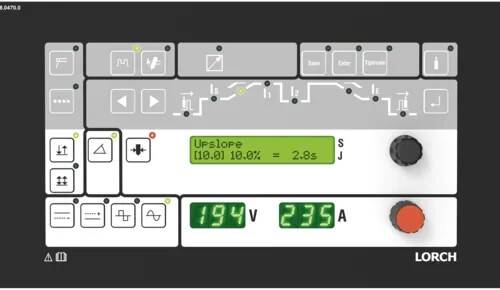

    Control panel V standard:

    • "3 steps and weld" operating concept

    • Simple one-button operation

    • Stepless current adjustment

    • Digital volt-ampere display

    • LCD graphic display with language selection

    • User-oriented operator guidance via illuminated symbols and welding sequence control

    • Tiptronic job memory for 100 welding tasks

  • Details Data
    Mains voltage: 400V
    Welding range TIG AC/DC welding: 3-300A
    Duty cycle TIG AC welding 100% (AC/DC version): 250A
    Duty cycle TIG DC welding 100%: 250A
    Welding area electrodes welding: 20-250A
    Weldable electrodes: 1,5 – 6,0 mm
    Dimensions (LxWxH): 1130 x 450 x 815 mm
    Weight machine (DC version): 86,4kg
    Weight machine (AC/DC version): 93,6kg
    Weight water cooling (filled): 14,7kg
  • Download Lorch V Series Datasheet
